Wire mesh · Diamond crimp

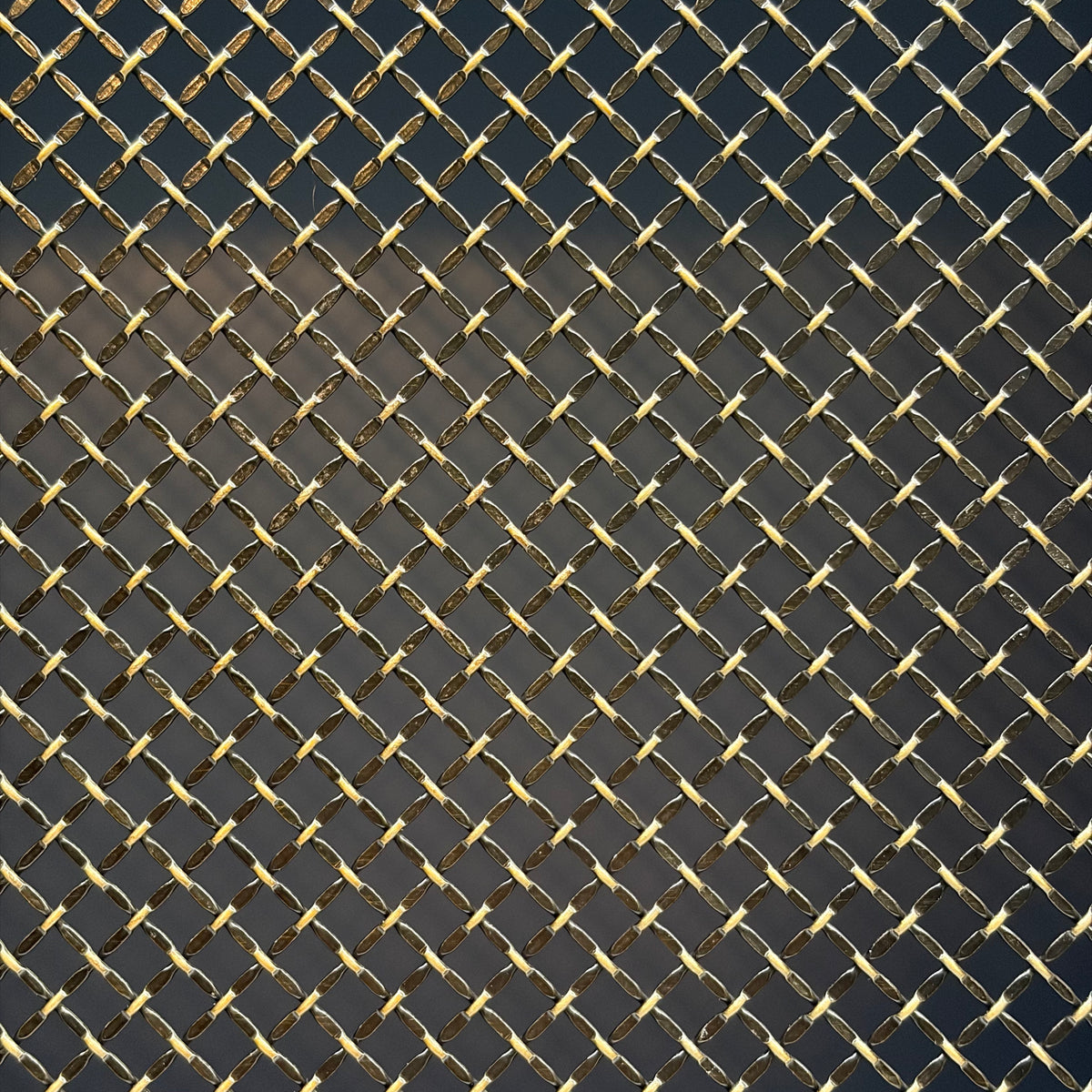

Nashville
FinishAntique Brass
Looks best on
- Natural wood
- White
- Two-tone
Opening0.193"
Overall thickness0.0825"
Max panel24" × 48"
Material specs
| Pattern | Diamond crimp |
|---|---|
| Finish | Antique Brass, plated |
| Wire size | 0.057" × 0.032" (1.45 × 0.81 mm) |
| Opening | 0.193" (4.90 mm) |
| Overall thickness | 0.0825" (2.10 mm) |
| Weight | 1.125 lb per sq ft (0.51 kg) |
| Largest single panel | 24" × 48" |
| Use | Indoor |
| Other finishes | Black (also shown here); Antique Bronze and Antique Nickel by special order |
How it's built into your doors
- Mesh is cut to size and set into a framed door, in any of our paint or wood colors.
- We order the doors with the mesh installed and deliver them with the rest of your cabinets.
- For indoor cabinets, islands, pantry and bar doors, built-ins and vanities.
- Wipe clean with a soft, dry cloth. Avoid cleaners and abrasives on plated finishes.
Sizes are nominal. Plated finishes can vary slightly from batch to batch and look different on screen. See the samples in our Lombard showroom.
All wire mesh styles
Add Nashville mesh to your cabinets
Tell us which doors you'd like to use mesh on. We'll recommend the right door style and include it in your free quote.
